Portable Line Boring Machines BD-50

Portable Line Boring Welding Machine BD 50

Portable Line Boring Machines
Look down to the basic features of line boring machine!
The portable line boring machine cuts within the drag to extend its measurement. The line boring machines are created so a drag could be set aside a few minutes, by delivering the most astounding resilience and conceivable surface complete with it.

Specifications
The portable line boring machines can be in different which incorporate the re-drilling of articulating joints, tool pails, pivot focuses, wheel loader arm stick openings and guiding hub sleeves which mind utilized in the hardcore fork trucks. The advantage you will get by utilizing the convenient exhausting line hardware is that it additionally offers the accuracy documented coordinating repairs too which can be made set up or in the site. By picking it, you will be required with a base measure of unbolting breaks, destroying and downtime will likewise be limited. Further, it will so help in expanding the profitability.

What a line boring machine for sale is used for
A line boring machines really serves to exhaust in the substantial development types of gear, for example, at last loaders and cranes as it is extremely practical hardware. A drag machine is ground-breaking, adaptable and simple to utilize which is accessible with a pressure driven and pneumatic drive. A line bore machine is proficient to quantify the bores by utilizing the outside micrometers and aligned inward micrometers.

GENERAL FEATURES

INTERNATIONAL
SHIPPING
CUSTOMER
SERVICE
RELIABLE
SHOPPING
BEST PRICE
GUARANTEE
ENERGY
SAVING
EASY INSTALLATION
& HANDLING

Some features that make LINEBORTECH portable boring machine different

The portable line boring machine should comprise of quality workmanship along with site tolerances and they are really easy to set up and install. These machines are of robust design and construction.

  • More powerful and trouble-free with the engine-coupled transmission.
  • The gears are hardened with 55 HRC and are made more durable.
  • Easy installation due to the structure consisting of light and durable materials.
  • The electronic panel allows you to control the sensitivity and power at the same time.
  • High standard modular design for ease of installation and transport.
  • We produce reliable products with 600 hours working guarantee.

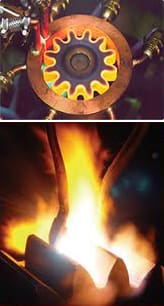

Thermally hardened, more durable construction.

The gears are both heat-treated and hardened with 55 HRC and made more durable.

Technical information and evaluation

Bar shaft diameter: 50 mm.

In-hole machining diameter (boring): From 52mm to 450mm.

In-hole machining diameter (welding): From 65mm to 450mm.

Bar shaft turn motor:

AC Servo Motor – Voltage:230VAC

Min: 0.20 Rpm. (rev/min.)  –  Max: 225 Rpm. (rev/min.)

Bar shaft Forward and reverse motion motor:

DC Servo Motor – Power:90Watts, Voltage:24VDC

Speed Range min: 0.05mm/min   –   max: 95mm/min

Stroke : 230mm.

● Wide speed range, flat torque
● Excellent speed stability
● Compact and high power
● High efficiency and energy-saving

Working voltage:

230VAC  50/60 hz – 10 Amp.

Control circuit devices and switching elements :

● Start / Stop  switch
● Emergency button
● Toggle switches(Right left rotation switch/stepping)
● Emergency button
● Speed/cyclic control knob
 Move back and forth stepping switch
● Fast motion button
● Reset button
 Control screen

How can we help you?

Portable line boring welding machine are mounted on the workpiece with a three-point carrier material. For example; If the connection holes of an excavator bucket are to be machined. They are mounted on the workpiece of the portable line boring welding machine with various connection equipment so as not to cause axis misalignment.

BD-50 Standard equipment list :

  • Bar Shaft 200cm + 75cm – With 26 holes – 1 Set.
  • Electronic Control Panel – 1 pcs.
  • Portable Boring Machine – 1 pcs.
  • Transport and Service Trolley – 1 pcs.
  • Shaft Bearing – 4 pcs.
  • Short Support a Bracket 60mm(for adjusting diameters)–12 pcs.
  • Long Support a Bracket 200mm(for adjusting diameters)–12 pcs.
  • Centering apparatus – 2 pcs.
  • Tool holder / Right – 1 pcs. (S12K SCLCR 100mm)
  • Tool holder / Left – 1 pcs. (S12K SCLCR 100mm)
  • Carbide insert SCLCL09 (lathe cutting tool) – 1 set. ( 10 pcs.)
  • Allen wrench Set – 1 pcs.
  • Phillips screwdriver – 1 pcs.
  • Socket screwdriver  no:10– 1 pcs.
  • A Clockless Comparator – 1 pcs.
  • Fork spanner 20/22 – 2 pcs.

BD-50 Standard equipment list :

IF YOU WANT TO ORDER THE BD-50 MODEL!
